The digital drives are based on Elmo’s advanced SimplIQ motion control technology. They operate from a DC power source in current, velocity, position and advanced position modes, in conjunction with a permanent-magnet synchronous brushless motor, DC brush motor, linear motor or voice coil. They are designed for use with any type of sinusoidal and trapezoidal commutation, with vector control. The Eagle HV can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network.

The drives are easily set up and tuned using Elmo’s Composer software tools. This Windows-based application enables users to quickly and simply configure the servo drive for optimal use with their motor. The Eagle HV, as part of the ExtrIQ product line, is fully programmable with Elmo’s Composer motion control language.

Power to the drives is provided by a DC power source (not included with the Eagle HV).

Mating Power Supply Elephant.

Eagle HV Highlights:

Ready to use in extreme conditions

SimplIQ core motion control technology

Ultra-high qualitative power density

Panel mounting

Top efficiency

Supports a wide variety of feedbacks

Vector control sinusoidal commutation

Advanced filtering and velocity gain scheduling for enhanced dynamic performance

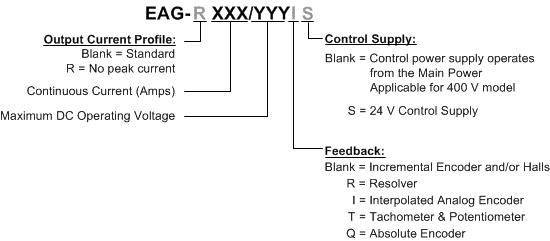

Power Ratings for 400 V Models

Power Ratings for 700 V Models

Note: This model will not be used in new designs of the drive.

Power Ratings for 700 V Models
