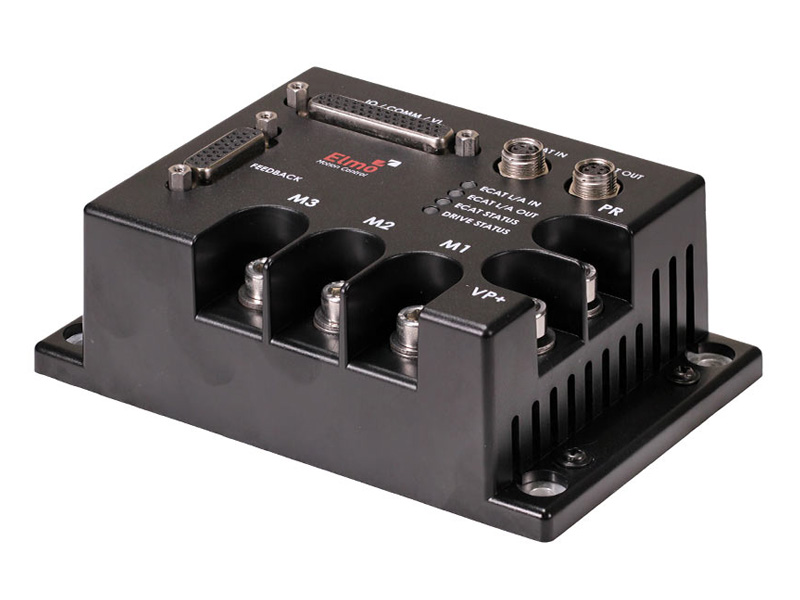

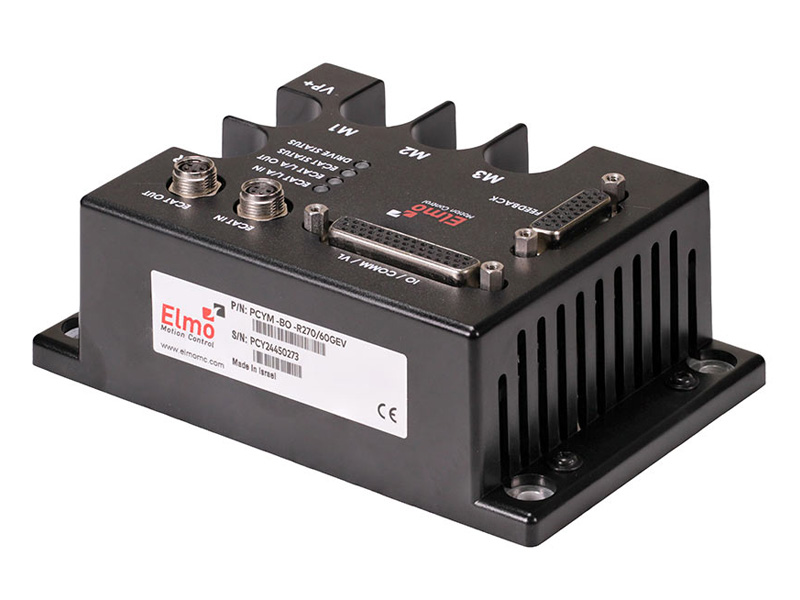

The Platinum Cymbal is an advanced, high-power-density servo drive that provides top performance, advanced networking, built-in safety, a fully featured motion controller, and local intelligence, ideally suited for Extreme Environments.

The Platinum Cymbal ultra-high current servo drive delivers up to 270A @ up to 60VDC, 240A @ up to 80VDC, 210A @ up to 100VDC, and 100A @ up to 200VDC. This advanced high-power density servo drive has up to 17 kW power in a 674.54 cm3 (41.19 Inch) compact package 92 x 141 x 52 mm (3.62″ x 5.55″ x 2.05″).

These advanced, high-power-density servo drives provide top performance, functional safety, STO models, advanced networking, as well as a fully featured motion controller, local intelligence, and safe and regular IO options.

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servos with enhanced functionality and ease of use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion control and utmost safety.

Platinum Cymbal Highlights

Ready for the Extreme, Field-proven, high MTBF

High current servo drive: Up to 270A/60V, 240A/80V, 210A/100V, 100A/200V

Ultra Efficient, >99%

Up to 17kW of continuous electrical output power

Ultra-Fast EtherCAT Networking

Harsh Environment Functional Safety & FSoE

Negligible EMI

Platinum Line Highlights

Best-In-Class servo performance

World’s smallest servo technology to feature Harsh Environment functional safety and safety over EtherCAT (FSoE)

Higher bandwidth, faster response, enhanced linearity and highest control resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

Added feedback support: up to three simultaneously, or two absolute feedbacks

High processing power with large memory resources for better control, enhanced processing, and real time recording

Composer2, Proprietary Drive Level SIL( Software In The Loop), allows running customer’s control algorithms within the drive’s real-time
