Gold-Duet-40電機：

Gold Duet是(shi)Elmo的頂(ding)級(ji)集成(cheng)伺(si)服(fu)電機系列(lie)(lie)，配備(bei)內(nei)置Gold系列(lie)(lie)Elmo驅動器。

該系列中添(tian)加的(de)(de)最新(xin)版(ban)本可(ke)以(yi)使用高性能的(de)(de)80和110幀伺(si)服電機。Duets中的(de)(de)Gold系列數(shu)字(zi)伺(si)服驅動器具有很(hen)高的(de)(de)彈性，旨在提(ti)供最高密度的(de)(de)功(gong)率(lv)和智能。新(xin)款Gold Duet以(yi)緊湊(cou)的(de)(de)高品質包裝提(ti)供高功(gong)率(lv)。

額定扭矩：高達(da)6.0Nm（1880W）

直接從高達480AC的整流交流電運行(xing)

無需隔離變壓器

峰值功率高達3kW

高級EtherCAT和(he)CANopen網絡(luo)

40 mm Flange 100V to 200V Motor Electrical and Physical Data

Parameter		50W, 100V	50W, 200V		100W, 200V
Motor
Rated Rotation Speed	rev/min	3000	3000	3000	3000
Rated Torque	Nm	0.16	0.16	0.32	0.32
Maximum Peak Torque	Nm	0.48	0.48	0.96	0.96
Rotor Inertia	x10-4 kgm2
Rotor Inertia with brake	x10-4 kgm2
Electrical
Min DC bus for Rated Speed @ 3XRated Torque	VDC	46	115	46	110
Minimum Supply Voltage	VDC	23	23	23	23
Maximum Supply Voltage	VDC	96	196	96	196
DC Bus Input Current @Vbus At Rated Speed & Rated Torque	A/V	1.3/@48V 0.7A@85V	0.4A@170V	2.6A@48V 1.5A@85V	0.7A@170V
VL , Control & Logic Supply	VDC	See Table on Auxiliary Supply Input Voltage (VL)
Mechanical
Weight W/O Brake	Kg	0.5	0.5	0.7	0.7
Weight With brake	Kg	1.0	1.0	1.2	1.2
Dimensions W/O Brake	mm (in)	105x83.6x43.1 (4.13x3.29x1.70)	105x83.6x43.1 (4.13x3.29x1.70)	131x83.6x43.1 (5.16x3.29x1.70)	131x83.6x43.1 (5.16x3.29x1.70)
Dimensions With Brake	mm (in)	138x83.6x43.1 (4.13x3.29x1.70)	138x83.6x43.1 (4.13x3.29x1.70)	166x83.6x43.1 (6.55x3.29x1.70)	166x83.6x43.1 (6.55x3.29x1.70)
Encoders		Options Single turn 20 bits Absolute Encoder, N option. Multi-turn, 20 bits single turn + 16 bits multi-turn, including battery, T option Quadrature 2500 ppr + commutation signals (Hall signals), E option Other resolution on request
Structure		Totally enclosed, non-ventilated
Protection level		IP65

40 mm Flange 400V Motor Electrical and Physical Data

Parameter	Units	50W, 400V
Motor
Rated Rotation Speed	rev/min	3000	3000
Rated Torque	Nm	0.16	0.32
Maximum Peak Torque	Nm	0.48	0.96
Rotor Inertia	x10-4 kgm2	0.031	0.059
Rotor Inertia with brake	x10-4 kgm2	0.031	0.059
Electrical
Min DC bus for Rated Speed @ 3XRated Torque	VDC	100	100
Minimum Supply Voltage	VDC	100	100
Maximum Supply Voltage	VDC	396	396
DC Bus Input Current @Vbus At Rated Speed & Rated Torque	A/V	0.15A@320V	0.3A@320V
VL , Control & Logic Supply	VDC	See Table on Auxiliary Supply Input Voltage (VL)
Mechanical
Weight W/O Brake	Kg	0.65	0.90
Weight With brake	Kg	0.80	1.10
Dimensions W/O Brake	mm (in)	160.7x96.4x65.2 (6.33x3.80x2.57)	186.7x96.4x65.2 (7.35x3.80x2.57)
Dimensions With Brake	mm (in)	193.7x96.4x65.2 (7.63x3.80x2.57)	222.10x96.4x65.2 (8.74x3.80x2.57)
Encoders		Options Single turn 20 bits Absolute Encoder, N option. Multi-turn, 20 bits single turn + 16 bits multi-turn, including battery, T option Quadrature 2500 ppr + commutation signals (Hall signals), E option Other resolution on request
Structure		Totally enclosed, non-ventilated
Protection level		IP65

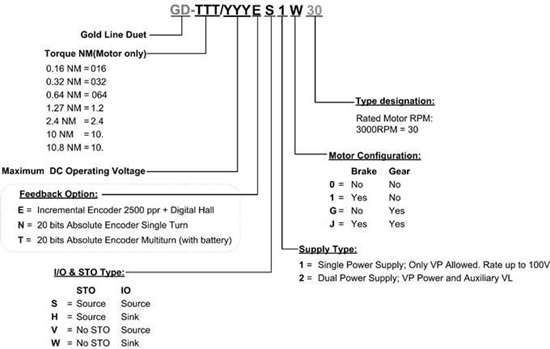

Gold-Duet-40電機(圖1)
