Gold-Tiger驅動器

-40C至(zhi)+70C，振(zhen)動高(gao)達14GRMS 超緊湊型、直接連(lian)接電源(yuan)、基(ji)于網(wang)絡的伺服驅動器（高(gao)達16A/800VDC和高(gao)達22A/400VDC）設(she)計、鑒定、驗證、制造和測試可承(cheng)受(shou)極端(duan)環境(jing)。配套電源(yuan)ELP-30。

撥打電話撥打電話

咨詢電話：135-2433-6395

微(wei)信(xin)：monotion123郵箱：info@yupitang.com

產品詳情

Feature	Units	6/400	12/400	16/400	R17/400	R22/400
Minimum supply voltage	VDC	A, H, S, or T in P/N*: 50 0 or 1 Option in P/N: 100
Nominal supply voltage	VDC	325
Maximum supply voltage	VDC	400
Maximum continuous power output	kW	2	4	5	5.5	7
Efficiency at rated power (at nominal conditions)	%	> 98
Control supply voltage option	VDC	18 V to 30 V Only for Control Supply A/H/S/T Option Models
Control power supply	VA	7
Continuous current limit (Ic) Amplitude sinusoidal/DC trapezoidal commutation	A	6	12	16	17	22
Sinusoidal continuous RMS current limit (Ic)	A	4.2	8.5	11.3	12	15.5
Peak current limit	A	2 x Ic			No peak

Feature	Units	8/800	12/800	R11/800	R16/800
Minimum supply voltage	VDC	A, H, S, or T Option in P/N*: 95+
Nominal supply voltage	VDC	560 for 400 VAC 680 for 480 VAC
Maximum supply voltage	VDC	780
Maximum continuous power output	kW	5	7.5	7	10
Efficiency at rated power (at nominal conditions)	%	> 98
Control supply voltage option	VDC	18 V to 30 V Only for Control Supply A/H/S/T Option Models
Control power supply	VA	7
Continuous current limit (Ic) Amplitude sinusoidal/DC trapezoidal commutation	A	8	12	11	16
Sinusoidal continuous RMS current limit (Ic)	A	5.7	8.5	7.8	11.3
Peak current limit	A	2 x Ic		No peak

Feature	Units	8/900	12/900	R11/900	R16/900
Minimum supply voltage	VDC	A, H, S, or T Option in P/N*: 95+
Nominal supply voltage	VDC	622 for 440 VAC
Maximum supply voltage	VDC	880
Maximum continuous power output	kW	5.5	8.4	7.7	11
Efficiency at rated power (at nominal conditions)	%	> 98
Control supply voltage option	VDC	18 V to 30 V Only for Control Supply A/H/S/T Option Models
Control power supply	VA	7
Continuous current limit (Ic) Amplitude sinusoidal/DC trapezoidal commutation	A	8	12	11	16
Sinusoidal continuous RMS current limit (Ic)	A	5.7	8.5	7.8	11.3
Peak current limit	A	2 x Ic		No peak

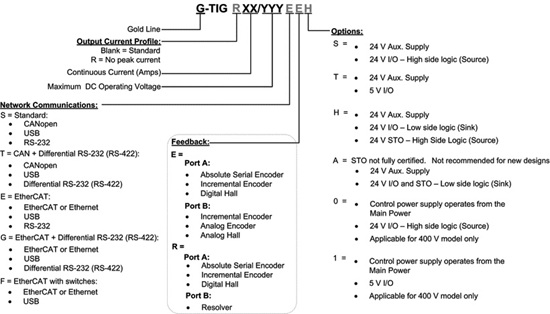

Gold-Tiger驅動器(圖1)
