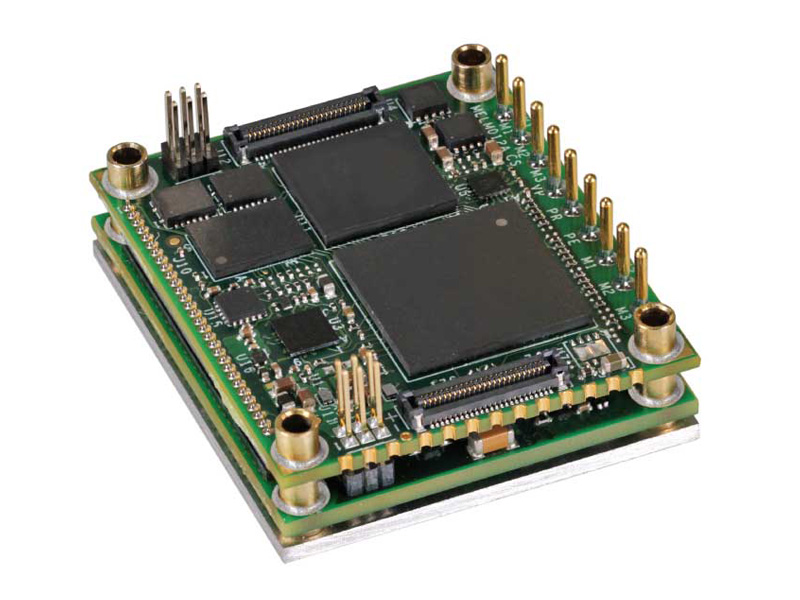

Elmo驅動器(qi)Titanium系列
100V ModelsFeatureUnits1/1002.5/1005/10010/10012/10015/100Minimum supply voltageVDC10Nominal supply voltageVDC85Maximum suppl
產品詳情
100V Models
| Feature | Units | 1/100 | 2.5/100 | 5/100 | 10/100 | 12/100 | 15/100 |
|---|---|---|---|---|---|---|---|
| Minimum supply voltage | VDC | 10 | |||||
| Nominal supply voltage | VDC | 85 | |||||
| Maximum supply voltage | VDC | 90 | |||||
| Maximum continuous power output | W | 80W per axis. 160W in total | 195W per axis. 390W in total | 390W per axis. 780W in total | 780W per axis. 1560W in total | 935W per axis. 1870W in total | 1170W per axis. 2340W in total |
| Efficiency at rated power (at nominal conditions) | % | > 99 | |||||
| Maximum output voltage | Up to 96% of | ||||||
| Ic, Amplitude sinusoidal/DC continuous current | A | 1 | 2.5 | 5 | 10 | 12[1] | 15[1] |
| Sinusoidal continuous RMS current limit (Ic) | A | 0.7 | 1.8 | 3.5 | 7.07 | 8.48[1] | 10.6[1] |
| Peak current limit | A | 2 x Ic | |||||
[1] Peak time duration is limited to 1 second instead of default 3 seconds for both axes.
T Models Technical Data
| Feature | Units | 10/100 |
|---|---|---|
| Minimum supply voltage | VDC | 10 |
| Nominal supply voltage | VDC | 85 |
| Maximum supply voltage | VDC | 90 |
| Maximum continuous power output | W | 800W per axis. 1600W in total |
| Efficiency at rated power (at nominal conditions) | % | > 99 |
| Maximum output voltage | Up to 96% of DC bus voltage | |
| Ic, Amplitude sinusoidal/DC continuous current | A | 10 |
| Sinusoidal continuous RMS current limit (Ic) | A | 7.07 |
| Peak current limit | A | 3 x Ic |
Control Supply
| Feature | Details |
|---|---|
| Control supply input voltage for Safety | Isolated DC Source: 14V ÷ 60 V |
| Control supply input power | ≤4 W without external loading ≤8 W with full external loading |
