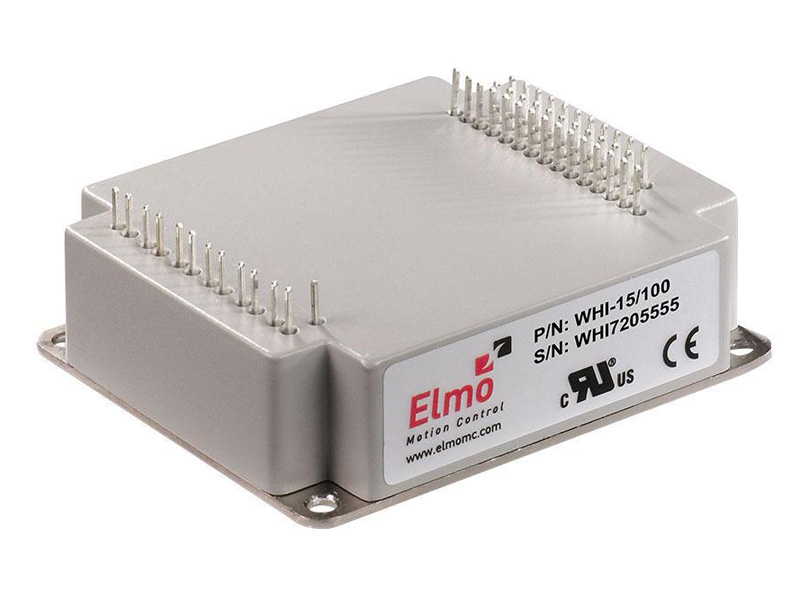

The Whistle is a series of intelligent miniature digital servo drives for DC brush and brushless motors, linear motors and voice coils.

The matchbox-sized servo drive weighs only 1.8 oz (50 g) and supports up to 50 amps continuous current. Its high density allows the drive to deliver a peak of 3200 W of power and 1600 W of continuous power. Based on Elmo’s SimplIQ Motion Control technology, the Whistle is capable of operating in position, velocity and current modes and contains a wide range of feedback and I/O options. With Elmo’s Composer software, users can easily perform drive setup, configuration, tuning, analysis and programming. The drive operates on DC power. The Whistle is a PCB mounted device that enables efficient and cost saving implementation.

Elmo also offers a range of Whistle-based products including:

The DUO and TRIO – integrated Whistle solutions that provide the power of two and three Whistle servo drives, respectively, in a single board

the Whistle Evaluation Board

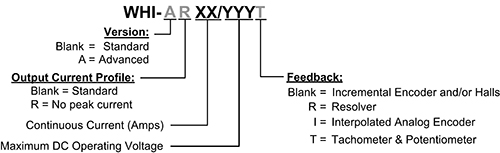

Up to 60V

Feature	Units	15/48	20/48	1/60	2.5/60	5/60	10/60	15/60	20/60
Minimum supply voltage	VDC	6		7.5
Nominal supply voltage	VDC	42		50
Maximum supply voltage	VDC	48		59
Maximum continuous power output	W	600	800	50	120	240	480	720	960
Efficiency at rated power (at nominal conditions)	%	> 99
Maximum output voltage		> 95% of DC bus voltage at f=22 kHz
Auxiliary power supply	VDC	12 – 95 VDC (up to 2.5 VA inc. 5 V/200 mA for encoder)
Amplitude sinusoidal/DC continuous current	A	15	20	1	2.5	5	10	15	20
Sinusoidal continuous RMS current limit (Ic)	A	10.6	14.1	0.7	1.8	3.5	7	10.6	14.1
Peak current limit	A	2 x Ic
Weight	g (oz)	50 g (1.8 ounces)
Dimensions	mm (in)	55 x 15 x 46.5 (2" x 0.6" x 1.8")
Digital in/Digital out/ Analog in		6/2/1
Mounting method		PCB mount

100V

Feature	Units	1/100	2.5/100	5/100	10/100	15/100	20/100	25/100	R50/100
Minimum supply voltage	VDC	12
Nominal supply voltage	VDC	85
Maximum supply voltage	VDC	95
Maximum continuous power output	W	80	200	400	800	1200	1600	2000	4000
Efficiency at rated power (at nominal conditions)	%	> 99
Maximum output voltage		> 95% of DC bus voltage at f=22 kHz
Auxiliary power supply	VDC	12 – 95 VDC (up to 2.5 VA inc. 5 V/200 mA for encoder)
Amplitude sinusoidal/DC continuous current	A	1	2.5	5	10	15	20	25	50
Sinusoidal continuous RMS current limit (Ic)	A	0.7	1.8	3.5	7	10.6	14.1	17.7	35.4
Peak current limit	A	2 x Ic							No Peak
Weight	g (oz)	50 g (1.8 ounces)
Dimensions	mm (in)	55 x 15 x 46.5 (2" x 0.6" x 1.8")
Digital in/Digital out/ Analog in		6/2/1
Mounting method		PCB mount

200V

Feature	Units	3/200	6/200	10/200
Minimum supply voltage	VDC	24
Nominal supply voltage	VDC	170
Maximum supply voltage	VDC	195
Maximum continuous power output	W	480	960	1600
Efficiency at rated power (at nominal conditions)	%	> 99
Maximum output voltage		> 95% of DC bus voltage at f = 22 kHz
Auxiliary power supply	VDC	12 – 95 VDC (up to 2.5 VA inc. 5 V/200 mA for encoder)
Amplitude sinusoidal/DC continuous current	A	3	6	10
Sinusoidal continuous RMS current limit (Ic)	A	2.12	4.24	7.07
Peak current limit	A	2 x Ic
Weight	g (oz)	50 g (1.8 ounces)
Dimensions	mm (in)	55 x 15 x 46.5 (2" x 0.6" x 1.8")
Digital in/Digital out/Analog in		6/2/1
Mounting method		PCB mount
