Gold Double BeeThe World’s Toughest, Most Advanced and Powerful Miniature Servo Drive.Provides over 10,000 of Qualitative Wat

咨詢電話：135-2433-6395

微信：monotion123郵(you)箱(xiang)：info@yupitang.com

產品詳情

Gold Double Bee Highlights:

High power density, over 10000 of “Qualitative” Watts

Ultra high current – up to 160A/80V, 140A/100V

Record-setting weight of only 18-22 grams (less than 1 ounce)

Ultra Small, Ultra Efficient, designed to be mounted on a PCB

Advanced networking by EtherCAT Or CANOpen

Wide Operating ranges:

“80VDC”,11VDC- 75VDC

“100VDC”, 11VDC- 95VDC

“200VDC”, 20VDC- 195VDC

Supports any feedback sensor in single, dual and gantry loop configurations

Incorporates Proprietary “Fast and Soft Switching Technology” resulting in >99% efficiency yet negligible EMI

Feature	Units	D160/80	D140/100	D40/200
Minimum supply voltage	VDC	11	11	20
Nominal supply voltage	VDC	65	85	170
Maximum supply voltage	VDC	75	95	195
Maximum continuous Electrical power output	kW	10	11	7
Efficiency at rated power (at nominal conditions)	%	> 99
Maximum output voltage		Up to 96% of DC bus voltage
Amplitude sinusoidal/DC continuous current	A	160	140	40
Not for DC Motor Sinusoidal continuous RMS current limit (Ic)	A	113	99	28
For DC Motor only	A	100		40
Current limit	A	Max Output current is guaranteed for THeat-Sink <85°C

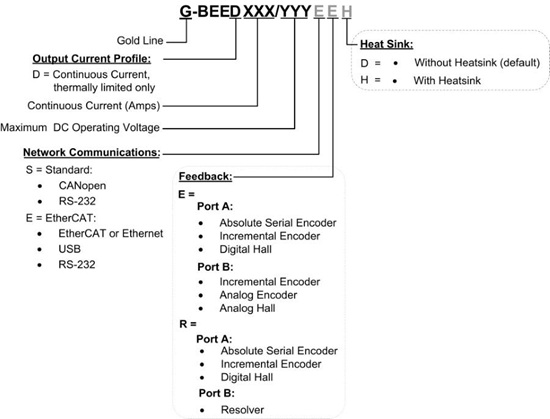

Gold-Double-Bee驅動器(圖1)
